Risk assessment for flooding - building damage and population exposure#
Click
Introduction#
This workflow assesses economic damage to buildings, exposure of critical infrastructure, and population exposure & displacement, by combining flood map data (hazard) and population and building data (exposure).
Building damage & critical infrastructure#

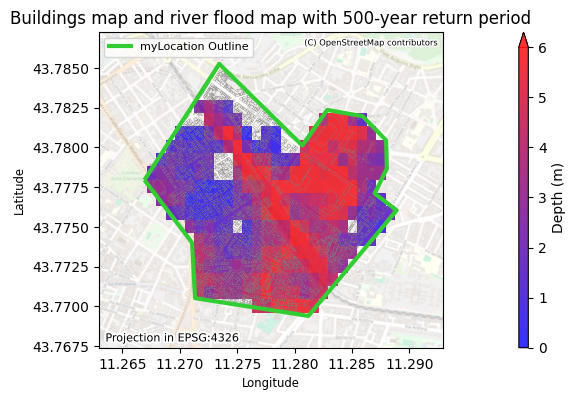

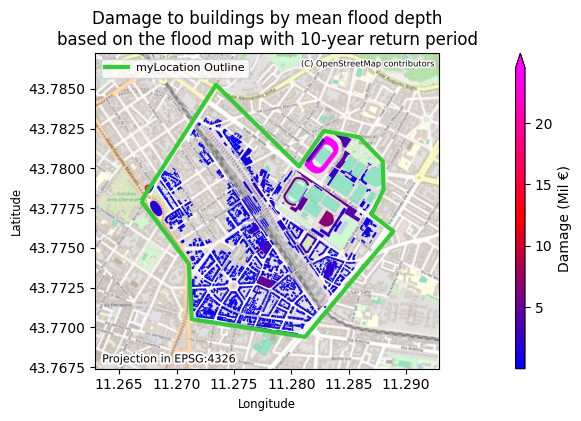

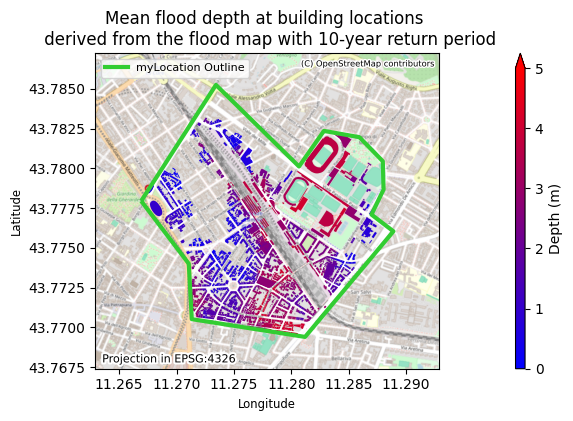

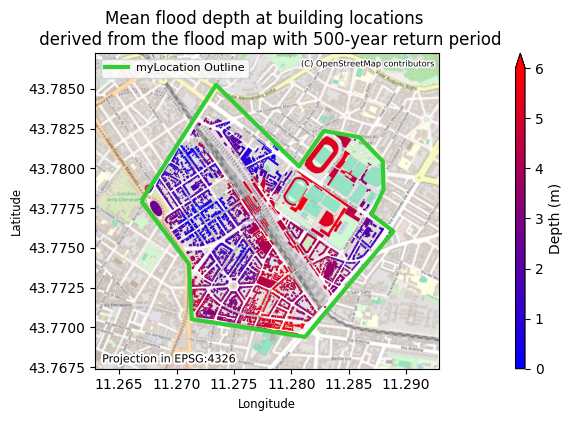

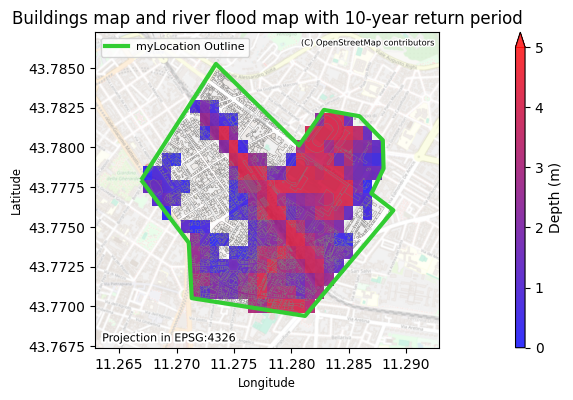

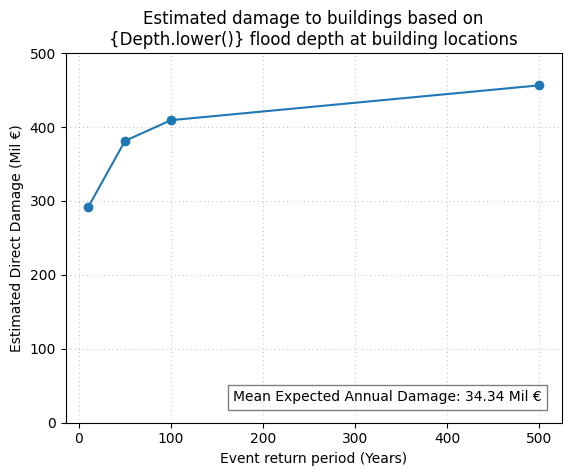

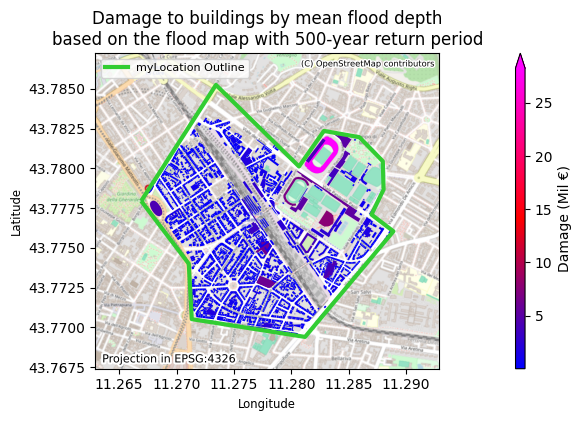

Flood risk in the form of economic damage at a building level is computed from flood depth maps and building data. The damages are computed for each flood event (flood map for a given return period) and then integrated over all of the event return periods to determine expected annual damage (EAD). Damage to each building varies based on the local flood depth, reconstruction costs, value of its contents, and its footprint area.
Datasets:

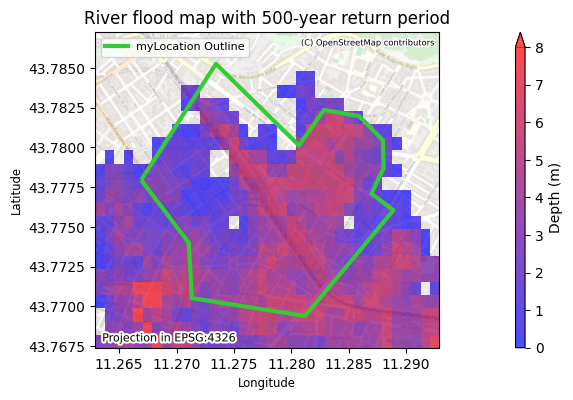

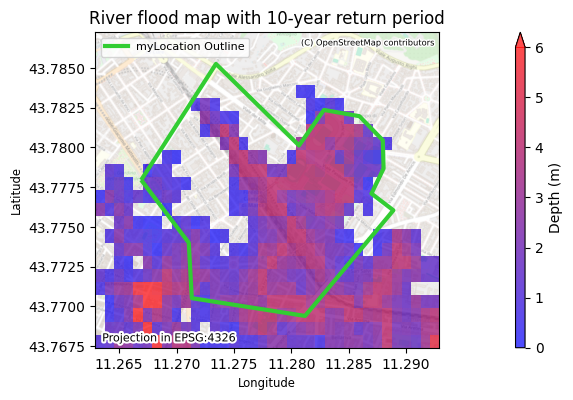

River flood extent and depth are from the European Commission’s Joint Research Centre for different return periods at 3 arc-seconds resolution.

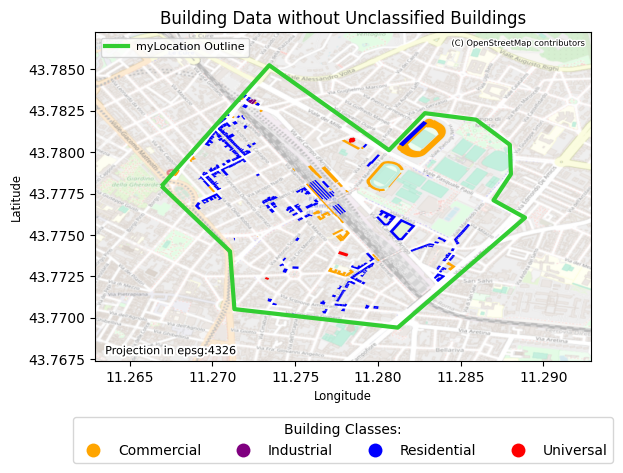

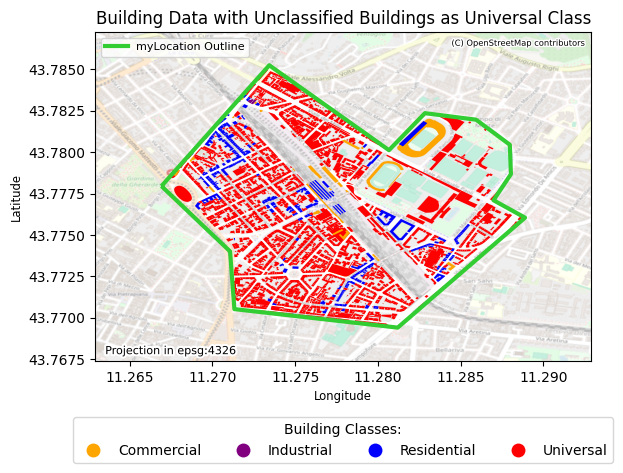

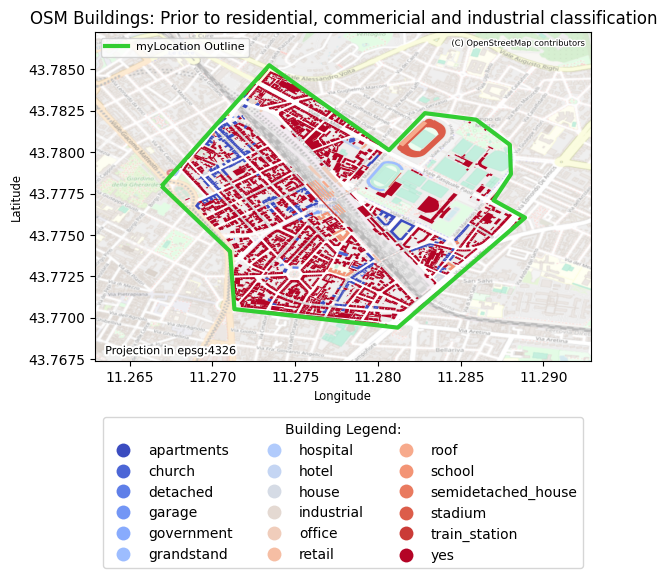

Building data, including type and footprint are obtained from OpenStreetMap.
Building damage fraction, reconstruction costs, and the value of its contents are determined using the JRC methodology.

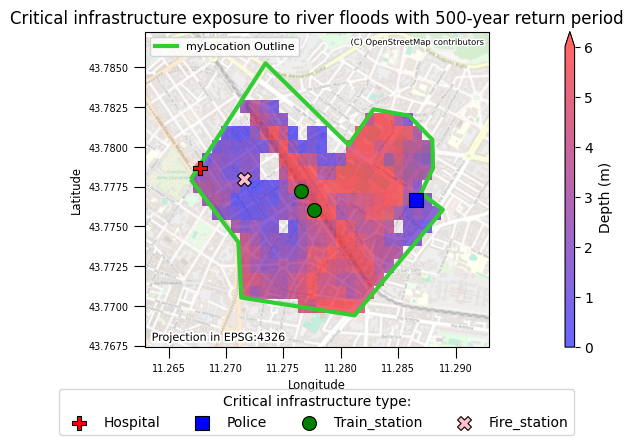

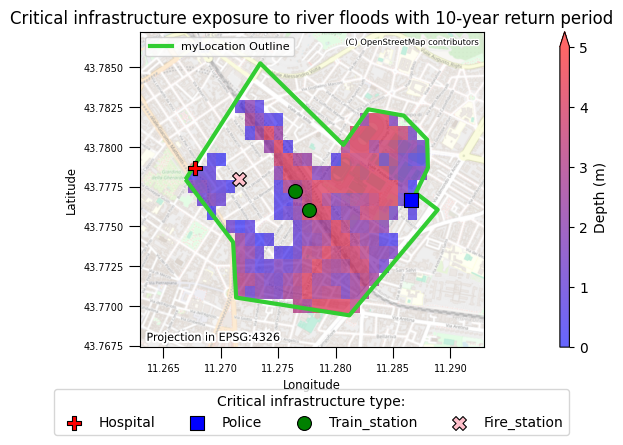

Furthermore, critical infrastructure is mapped onto the flood maps to visually assess its exposure to the hazard.
The code can be customized to use any flood map, building data, and depth-damage relationships.
Population exposure & population displaced#

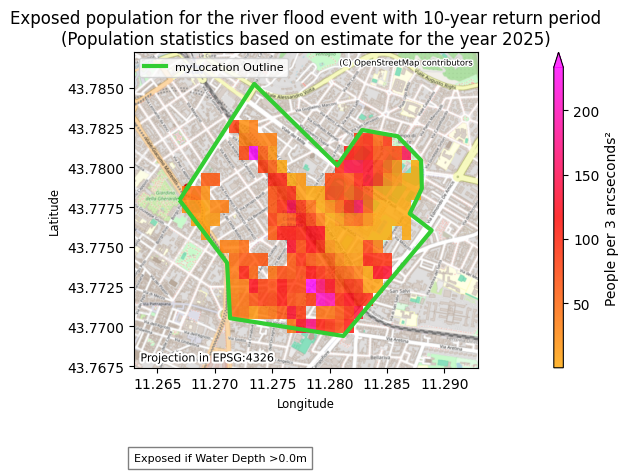

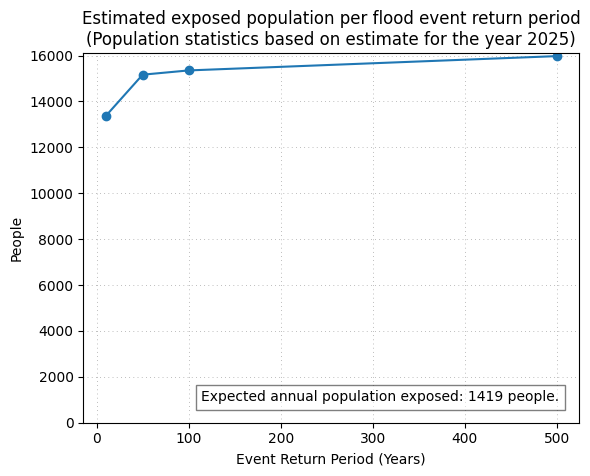

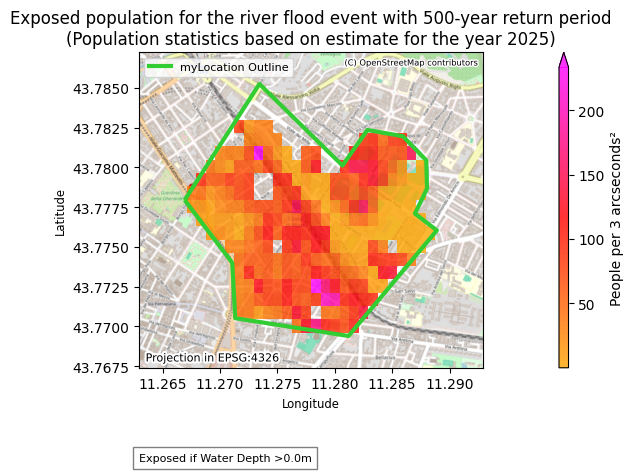

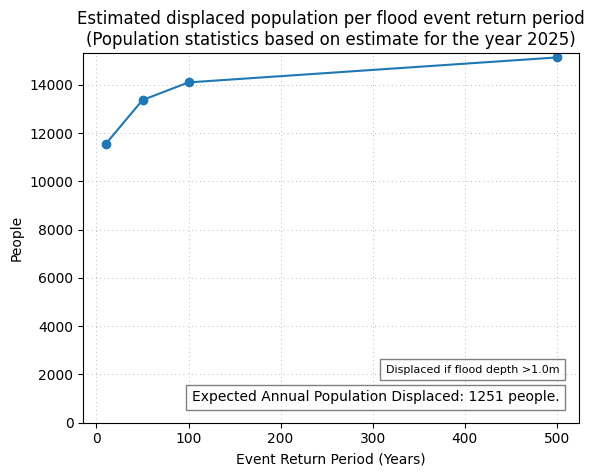

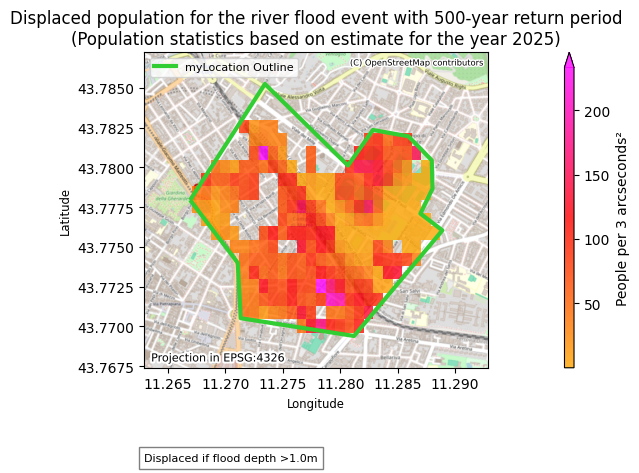

Population exposure and displaced population are computed from flood maps and population maps. The population data by default is based on a global dataset and one can choose from a number of options for the time period (past years and projections for near future). Population is considered displaced when the population is exposed to flood depths over a given threshold. For both exposure and displacement, the results are integrated over all of the event return periods to determine expected annual population exposed (EAPE) and expected annual population displaced (EAPD).
Datasets:
River flood extent and water depth are from the European Commission’s Joint Research Centre for different event return periods at 3 arc-seconds resolution.

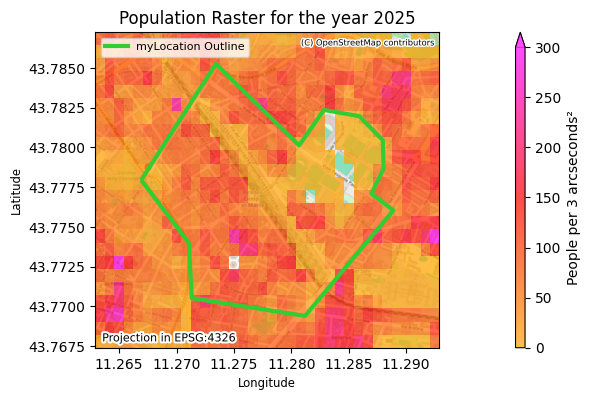

Population distribution maps are from the European Commission’s Joint Research Centre.
The code can be customized to use any population data, flood map, and minimum water depth threshold to classify the exposed and displaced populations.
Limitations#
The flood maps that are used in this workflow by default do not take into consideration possible flood protection infrastructure that may in reality limit the impact of the hazard. Moreover, the resolution of 3 arc-seconds for both the flood maps and population maps may be unsitable for particularly complex regions. If possible, it is suggested to use local data which may lead to a better representation of the ground truth.
Furthermore, buildings that are close to water bodies (e.g: rivers) may overlap the water body, thus resulting in higher than expected flood depths (and damage) values being used in the damage calculations. This effect can be reduced by using higher resolution flood maps. Similarly, due to the resolution of both the population and the flood maps, it might be that part of the population appears to be over a water body and is counted towards the overall exposed and displaced statistics irregardless of flooding.
Preparation work#
Import modules#
Find more info about the libraries used in this workflow here
These modules are needed to process the data in this workflow and to plot the results.
os: For interacting with the operating system, allowing the creation of directories and file manipulation.
sys: Provides access to some variables used or maintained by the interpreter and to functions that interact strongly with the interpreter. It is always available.
numpy: A powerful library for numerical computations in Python, widely used for array operations and mathematical functions.
pandas: A data manipulation and analysis library, essential for working with structured data in tabular form.
geopandas: Extends the datatypes used by pandas to allow spatial operations on geometric types.
rasterio: For reading and writing geospatial raster data, providing functionalities to explore and manipulate raster datasets.
rasterstats: For summarizing geospatial raster datasets based on vector geometries.
shapely: For manipulation and analysis of planar geometric objects.
osgeo: For translating raster and vector geospatial data formats.
osmnx To easily download, model, analyze, and visualize street networks and other geospatial features from OpenStreetMap.
pyproj: Interface for PROJ (cartographic projections and coordinate transformations library).
matplotlib: Used for creating static, animated, and interactive visualizations.
contextily: For adding basemaps to plots, enhancing geospatial visualizations.
urllib.request: Defines functions and classes which help in opening URLs (mostly HTTP) in a complex world — basic and digest authentication, redirections, cookies and more.
zipfile: Provides tools to create, read, write, append, and list a ZIP file.
socket: pPovides access to the BSD socket interface.
import os
import sys
import numpy as np
import pandas as pd
import geopandas as gpd
import rasterio
from rasterio.windows import from_bounds
from rasterio.enums import Resampling
from rasterio.warp import reproject, calculate_default_transform
import rasterstats
from osgeo import gdal, osr
from shapely.geometry import box, Polygon
import osmnx as ox
from pyproj import Transformer
from matplotlib.colors import LinearSegmentedColormap
import matplotlib.pyplot as plt
import matplotlib.patheffects as pe
from mpl_toolkits.axes_grid1 import make_axes_locatable
import contextily as ctx
import urllib.request
from zipfile import ZipFile
import socket
import warnings
Define inputs#
In this section different input parameters are set. Please read the descriptions when provided to ensure the appropriate changes are made.
Geographical bounds of area of interest. Positive values denote north and east, and negative values denote south and west.
Code flags (e.g. choosing which maps get produced)
Return periods
Directory locations
Colorbars for maps
## Location (in ESPG:4326) --------------------------------------
# Florence, Italy (Example 1)
Latitude1, Latitude2 = 43.76, 43.77
Longitude1, Longitude2 = 11.24, 11.30
# Žilina, Slovakia (Example 2)
#Latitude1, Latitude2 = 49.2, 49.25
#Longitude1, Longitude2 = 18.69, 18.78
"""#Larvik, Norway (Example 3, stitching example)
Latitude1, Longitude1 = 59.18456,9.89745
Latitude2, Longitude2 = 58.95307,10.11063"""
# TMP, Italy (Example 1)
Latitude1, Latitude2 = 43.77, 43.78
Longitude1, Longitude2 = 11.26, 11.27
# Ordering coordinates
Latitude1, Latitude2 = min(Latitude1, Latitude2), max(Latitude1, Latitude2)
Longitude1, Longitude2 = min(Longitude1, Longitude2), max(Longitude1, Longitude2)
## Return Periods of Interest ------------------------------------
# Return period levels, if using original source pick from [10, 20, 30, 40, 50, 75, 100, 200, 500]
ReturnPeriods = [10, 30, 75, 100, 200, 500]
## Population estimate/projection year ---------------------------
#Can choose any year with a 5 year interval between 1975 and 2030 (estimates until 2020, projections after 2020)
PopYear = 2025
# Checking right date is chosen
if not (isinstance(PopYear, int) and 1975 <= PopYear <= 2030 and PopYear % 5 == 0):
raise ValueError("The variable must be an integer, between 1975 and 2030, and a multiple of 5.")
## Water Depths to Compute damages, based on Mean, Maximum, and/or Minimum depths at a building's location
# Mean will assume the water depth at a building's location to be the mean of it's max and min value. Max will assume the whole building's location has water depth value as at it's largest value, and viceversa for Min
Depths = ['Mean','Max','Min'] #Options are ['Mean', 'Max', 'Min']
## Water Depths for Exposed and Displaced Population---------------
# If depth is greater than this, the population is exposed
minDepthExposed = 0.1
# If depth is greater than this, the population is displaced
minDepthDisplaced = 1.0
## Figure Options ------------------------------------------
# Return period for the optional figures. If using original source pick from [10, 20, 30, 40, 50, 75, 100, 200, 500]
ImageReturnPeriod = [10,500] #At least one input, value/s MUST also be present in RetrunPeriods
for value in ImageReturnPeriod:
if value not in ReturnPeriods:
raise ValueError(f"Value {value} in ImageReturnPeriod is not present in ReturnPeriods, i.e. workflow is trying to create graphics from a return period not being analysed.\nEither remove it from ImageReturnPeriod, or add it into ReturnPeriod.")
# Damage curves (True prints)
flagDamageCurve = True
# Building Images (True prints)
#Building maps with classification
flagBuilding = True
#Building maps with flood level
flagBuildingH2o = True
#Building maps with damage received
flagBuildingDmg = True
#Annual damage by return period graph
flagBuildingDmgGraph = True
# Population Images (True prints)
#Population exposed map
flagPopulationExp = True
#Annual population exposed graph
flagPopulationExpGraph = True
#Population displaced map
flagPopulationDis = True
#Annual population displaced graph
flagPopulationDisGraph = True
## Figure Colour Scheme -------------------------------
# Water Depth Colorbar for Maps
cmap_h2o = LinearSegmentedColormap.from_list('gist_stern_inv',
['blue', 'red'], N=256)
# Building Class Colorbar for Maps
cmap_cls = LinearSegmentedColormap.from_list('gist_stern_inv',
['orange','purple', 'blue', 'red'], N=256)
# Population Colorbar for Maps
cmap_pop = LinearSegmentedColormap.from_list('gist_stern_inv',
['orange', 'red','fuchsia'], N=256)
# Damage Colorbar for Maps
cmap_dmg = LinearSegmentedColormap.from_list('gist_stern_inv',
['blue', 'red','fuchsia'], N=256)
## Data Management ----------------------------------
RP, tile_id_max = True,0 #Temporary initiation, will automatically change in workflow
# Directory of main folder (working directory)
dirWork = '.'
os.chdir(dirWork)
# Input Hazard Path
dirDepths = os.path.join(dirWork, 'data')
if not os.path.exists(dirDepths):
os.makedirs(dirDepths)
# OSM Output Path
dirOSM = os.path.join(dirWork, 'OSM')
if not os.path.exists(dirOSM):
os.makedirs(dirOSM)
# Results directory
dirResults = os.path.join(dirWork, 'DamageBuildings')
if not os.path.exists(dirResults):
os.makedirs(dirResults)
dirResultsPop = os.path.join(dirWork, 'ExposePopulation')
if not os.path.exists(dirResultsPop):
os.makedirs(dirResultsPop)
Download data#
In this section, the data required to run the analysis is downloaded.
Download flood depth and population rasters to the data folder if the file doesn’t exist.
River flood extent and water depth are from the Copernicus Land Monitoring Service for different return periods, with 3 arc-seconds resolution (30-75m in Europe).
Population densities are from the European Commission’s Joint Research Centre, with 3 arc-seconds resolution (30-75m in Europe).
This section can be modified to use local data.
#This workflow is using European data. If personal data wants to be used
#Note: There is a known issue with Mollweide projections. Standard projection used is 'EPSG:4326'
timeout = 90 # Download time out in seconds
max_retries = 5 # Maximum number of download attempts
socket.setdefaulttimeout(timeout)
##Flood data download
urlData='https://jeodpp.jrc.ec.europa.eu/ftp/jrc-opendata/CEMS-EFAS/flood_hazard/'
for RP in ReturnPeriods:
print(f'Return Period={str(RP)}')
rastDepths = os.path.join(dirDepths, f'Europe_RP{RP}_filled_depth.tif')
if os.path.exists(rastDepths):
print(f'Flood depth raster already exists (skipping download): {rastDepths}')
else:
rastTif = f'Europe_RP{RP}_filled_depth.tif'
pathRastTif = os.path.join(dirDepths, rastTif)
urlRastTif = os.path.join(urlData, rastTif)
print(urlRastTif)
for attempt in range(1, max_retries + 1):
print(f' Attempt: {attempt}')
try:
urllib.request.urlretrieve(urlRastTif, pathRastTif)
break # Break loop if download is successful
except Exception as e:
print(' Timeout. Retry data download')
if attempt == max_retries:
print(' Maximum number of timeouts reached. Data download failed')
print(f' Consider increasing timeout value {timeout} seconds')
print(f' Consider increasing maximum number of download attempts {max_retries}')
raise Exception(f'Timeout time {timeout} seconds exceeded {max_retries}')
print(' Unzipping downloaded file')
##Population data download ------------------------
def download_pop_rast(tile_id):#Downloading the raster files for Population
print(f'Population tile id: {tile_id}')
urlDataPop=f'https://jeodpp.jrc.ec.europa.eu/ftp/jrc-opendata/GHSL/GHS_POP_GLOBE_R2023A/GHS_POP_E{PopYear}_GLOBE_R2023A_4326_3ss/V1-0/tiles/'
rastPopulation= os.path.join(dirDepths, f'GHS_POP_E{PopYear}_GLOBE_R2023A_4326_3ss_V1_0_{tile_id}.tif')
if os.path.exists(rastPopulation):
print(f'Population raster already exists (skipping download)')
else:
rastZip = f'GHS_POP_E{PopYear}_GLOBE_R2023A_4326_3ss_V1_0_{tile_id}.zip'
pathRastZip = os.path.join(dirDepths, rastZip)
urlRastZip = os.path.join(urlDataPop, rastZip)
print(urlRastZip)
for attempt in range(1, max_retries + 1):
print(f' Attempt: {attempt}')
try:
urllib.request.urlretrieve(urlRastZip, pathRastZip)
break # Break loop if download is successful
except Exception as e:
print(' Timeout. Retry data download')
if attempt == max_retries:
print(' Maximum number of timeouts reached. Data download failed')
print(f' Consider increasing timeout value {timeout} seconds')
print(f' Consider increasing maximum number of download attempts {max_retries}')
raise Exception(f'Timeout time {timeout} seconds exceeded {max_retries}')
print(' Unzipping downloaded file')
with ZipFile(pathRastZip, 'r') as zip_ref:
zip_ref.extract(f'GHS_POP_E{PopYear}_GLOBE_R2023A_4326_3ss_V1_0_{tile_id}.tif',dirDepths)
def stitch_on_right(file1, file2, output_file):
if os.path.exists(output_file):
print(f'Stitched population raster already exists (skipping download)')
else:
with rasterio.open(file1) as src1, rasterio.open(file2) as src2:
# Get metadata and transform of the first raster
meta = src1.meta.copy()
# Calculate new dimensions for the stitched raster
new_width = src1.width + src2.width
new_height = max(src1.height, src2.height)
# Update metadata with new dimensions
meta.update(width=new_width, height=new_height)
# Create output raster
with rasterio.open(output_file, 'w', **meta) as dst:
# Write the first raster to the output raster
dst.write(src1.read(), window=rasterio.windows.Window(col_off=0, row_off=0, width=src1.width, height=src1.height))
# Write the second raster to the output raster
for i in range(1, src2.count + 1):
dst.write(src2.read(i), i, window=rasterio.windows.Window(col_off=src1.width, row_off=0, width=src2.width, height=src2.height))
def stitch_on_top(file1, file2, output_file):#Stitching two rasters vertically
if os.path.exists(output_file):
print(f'Stitched population raster already exists (skipping download)')
else:
with rasterio.open(file1) as src1, rasterio.open(file2) as src2:
# Get metadata and transform of the first raster
meta = src2.meta.copy()
# Calculate new dimensions for the stitched raster
new_width = max(src1.width, src2.width)
new_height = src1.height + src2.height
# Update metadata with new dimensions
meta.update(width=new_width, height=new_height)
# Create output raster
with rasterio.open(output_file, 'w', **meta) as dst:
# Write the second raster to the output raster
dst.write(src2.read(), window=rasterio.windows.Window(col_off=0, row_off=0, width=src2.width, height=src2.height))
# Write the first raster to the output raster
for i in range(1, src1.count + 1):
dst.write(src1.read(i), i, window=rasterio.windows.Window(col_off=0, row_off=src1.height, width=src1.width, height=src1.height))
def stitch_all(file1, file2, file3, file4, output_file):#Stitching four rasters
if os.path.exists(output_file):
print(f'Stitched population raster already exists (skipping download)')
else:
with rasterio.open(file1) as src1, rasterio.open(file2) as src2, rasterio.open(file3) as src3, rasterio.open(file4) as src4:
# Get metadata and transform of the first raster
meta = src3.meta.copy()
# Calculate new dimensions for the stitched raster
new_width = src3.width + src4.width
new_height = src1.height + src3.height
# Update metadata with new dimensions
meta.update(width=new_width, height=new_height)
# Create output raster
with rasterio.open(output_file, 'w', **meta) as dst:
# Write the first raster to the output raster
dst.write(src3.read(), window=rasterio.windows.Window(col_off=0, row_off=0, width=src3.width, height=src3.height))
# Write the second raster to the output raster
for i in range(1, src4.count + 1):
dst.write(src4.read(i), i, window=rasterio.windows.Window(col_off=src3.width, row_off=0, width=src4.width, height=src4.height))
# Write the third raster to the output raster
for i in range(1, src1.count + 1):
dst.write(src1.read(i), i, window=rasterio.windows.Window(col_off=0, row_off=src3.height, width=src1.width, height=src1.height))
# Write the fourth raster to the output raster
for i in range(1, src2.count + 1):
dst.write(src2.read(i), i, window=rasterio.windows.Window(col_off=src1.width, row_off=src3.height, width=src2.width, height=src2.height))
urlDataPopScheme='https://ghsl.jrc.ec.europa.eu/download/'
shpPopScheme = os.path.join(dirDepths, f'WGS84_tile_schema.shp')
if os.path.exists(shpPopScheme):
print(f'Population scheme shapefile already exists (skipping download)')
else:
rastZip = f'GHSL_data_4326_shapefile.zip'
pathRastZip = os.path.join(dirDepths, rastZip)
urlRastZip = os.path.join(urlDataPopScheme, rastZip)
print(urlRastZip)
for attempt in range(1, max_retries + 1):
print(f' Attempt: {attempt}')
try:
urllib.request.urlretrieve(urlRastZip, pathRastZip)
break # Break loop if download is successful
except Exception as e:
print(' Timeout. Retry data download')
if attempt == max_retries:
print(' Maximum number of timeouts reached. Data download failed')
print(f' Consider increasing timeout value {timeout} seconds')
print(f' Consider increasing maximum number of download attempts {max_retries}')
raise Exception(f'Timeout time {timeout} seconds exceeded {max_retries}')
print(' Unzipping downloaded file')
with ZipFile(pathRastZip, 'r') as zip_ref:
zip_ref.extractall(dirDepths)
# Load the shapefile
gdf = gpd.read_file(shpPopScheme)
# Iterate through each polygon and check if the point is inside
tile_id_min, tile_id_max = None, None
for index, row in gdf.iterrows():
left, top, right, bottom = row['left'], row['top'], row['right'], row['bottom']
# Check if the point is within the bounding box of the polygon
if left <= Longitude1 <= right and bottom <= Latitude1 <= top:
tile_id_min = row['tile_id']
if left <= Longitude2 <= right and bottom <= Latitude2 <= top:
tile_id_max = row['tile_id']
if tile_id_min is not None and tile_id_max is not None:
break
tileMax=tile_id_max.split('_')
Rmax, Cmax = tileMax[0][1:].split('R')[0], tileMax[1][1:].split('C')[0]
tileMin=tile_id_min.split('_')
Rmin, Cmin = tileMin[0][1:].split('R')[0], tileMin[1][1:].split('C')[0]
if tile_id_min == tile_id_max:
download_pop_rast(tile_id_max)
rastPopulation= os.path.join(dirDepths, f'GHS_POP_E{PopYear}_GLOBE_R2023A_4326_3ss_V1_0_{tile_id_max}.tif')
elif Rmin == Rmax and Cmin < Cmax: # Stitch on the right
download_pop_rast(tile_id_max)
download_pop_rast(tile_id_min)
file1 = os.path.join(dirDepths, f'GHS_POP_E{PopYear}_GLOBE_R2023A_4326_3ss_V1_0_{tile_id_min}.tif')
file2 = os.path.join(dirDepths, f'GHS_POP_E{PopYear}_GLOBE_R2023A_4326_3ss_V1_0_{tile_id_max}.tif')
rastPopulation = os.path.join(dirDepths, f'GHS_POP_E{PopYear}_GLOBE_R2023A_4326_3ss_V1_0_{tile_id_min}_to_{tile_id_max}.tif')
stitch_on_right(file1, file2, rastPopulation)
print(f'Stitched horizontally tiles {tile_id_min} and {tile_id_max}.')
elif Rmin > Rmax and Cmin == Cmax: # Stitch on the top
download_pop_rast(tile_id_max)
download_pop_rast(tile_id_min)
file1 = os.path.join(dirDepths, f'GHS_POP_E{PopYear}_GLOBE_R2023A_4326_3ss_V1_0_{tile_id_min}.tif')
file2 = os.path.join(dirDepths, f'GHS_POP_E{PopYear}_GLOBE_R2023A_4326_3ss_V1_0_{tile_id_max}.tif')
rastPopulation = os.path.join(dirDepths, f'GHS_POP_E{PopYear}_GLOBE_R2023A_4326_3ss_V1_0_{tile_id_min}_to_{tile_id_max}.tif')
stitch_on_top(file1, file2, rastPopulation)
print(f'Stitched vertically tiles {tile_id_min} and {tile_id_max}.')
elif Rmin > Rmax and Cmin < Cmax:
download_pop_rast(tile_id_max)
download_pop_rast(tile_id_min)
tile_id_tmp1=f'R{Rmin}_C{Cmax}'
tile_id_tmp2=f'R{Rmax}_C{Cmin}'
download_pop_rast(tile_id_tmp1)
download_pop_rast(tile_id_tmp2)
file1 = os.path.join(dirDepths, f'GHS_POP_E{PopYear}_GLOBE_R2023A_4326_3ss_V1_0_{tile_id_min}.tif')
file2 = os.path.join(dirDepths, f'GHS_POP_E{PopYear}_GLOBE_R2023A_4326_3ss_V1_0_{tile_id_tmp1}.tif')
file3 = os.path.join(dirDepths, f'GHS_POP_E{PopYear}_GLOBE_R2023A_4326_3ss_V1_0_{tile_id_tmp2}.tif')
file4 = os.path.join(dirDepths, f'GHS_POP_E{PopYear}_GLOBE_R2023A_4326_3ss_V1_0_{tile_id_max}.tif')
rastPopulation = os.path.join(dirDepths, f'GHS_POP_E{PopYear}_GLOBE_R2023A_4326_3ss_V1_0_{tile_id_min}_{tile_id_tmp1}_to_{tile_id_max}_{tile_id_tmp2}.tif')
stitch_all(file1,file2,file3,file4,rastPopulation)
print(f'Stitched together tiles {tile_id_min}, {tile_id_tmp1}, {tile_id_max}, {tile_id_tmp2}.')
print(f'Filen location: {rastPopulation}')
else:
raise ValueError(f"Location crosses population rasters {tile_id_min} and {tile_id_max}. Modify location or use personal data.)")
Return Period=10
Flood depth raster already exists (skipping download): .\data\Europe_RP10_filled_depth.tif
Return Period=30
Flood depth raster already exists (skipping download): .\data\Europe_RP30_filled_depth.tif
Return Period=75
Flood depth raster already exists (skipping download): .\data\Europe_RP75_filled_depth.tif
Return Period=100
Flood depth raster already exists (skipping download): .\data\Europe_RP100_filled_depth.tif
Return Period=200
Flood depth raster already exists (skipping download): .\data\Europe_RP200_filled_depth.tif
Return Period=500
Flood depth raster already exists (skipping download): .\data\Europe_RP500_filled_depth.tif
Population scheme shapefile already exists (skipping download)
Population tile id: R5_C20
Population raster already exists (skipping download)
Define depth-damage functions#
Damage caused to buildings can be determined in relation to flood depth that the buildings are subjected to. In this section the relationship between water depth and damage are determined.
Maximum damage values are based on:
Huizinga, J., Moel, H. de, Szewczyk, W. (2017). Global flood depth-damage functions. Methodology and the database with guidelines. EUR 28552 EN. doi: 10.2760/16510 With following assumed values:
CPI2010 = 2010 World Bank Consumer Price Index for country of interest.
CPI2022 = 2022 Consumer Price Index for country of interest (latest value).
In calculating maximum damage, first array value is 2010 building reconstruction costs per square meter.
Second array value is 2010 building content replacement value per square meter.
Damage classes:
Options are Residential, Commercial, Industrial, Agriculture, Cultural, and Transportation, as well as an Universal class.
In the default code, Agriculture, Cultural, and Transportation as well as unclassified buildings are set to Universal.
Damage function:
Based on polynomial functions fit to the JRC depth-damage curves, with the order depending on fit (coefs).
In the default code, a combined damage function is applied based on Residential, Commercial, and Industrial JRC depth-damage values
# Define arrays for damage values based on 2010 estimates
CPI2010 = 100 # 2010 EU Value
CPI2022 = 121.8 # 2022 EU Value
CPI_Frac = CPI2022 / CPI2010
MaxDmgRES = np.array([480, 240]) * CPI_Frac # EU Value
MaxDmgCOM = np.array([502, 502]) * CPI_Frac # EU Value
MaxDmgIND = np.array([328, 492]) * CPI_Frac # EU Value
MaxDmgAGR = np.array([0.23, 0.46]) * CPI_Frac # Italy 2021 (AGR), 0.23 EUR/m2
MaxDmgCUL = MaxDmgCOM # EU Value
MaxDmgTRS = MaxDmgIND # Italy 2021 (TRS)
MaxDmgUNI = (MaxDmgRES+MaxDmgCOM+MaxDmgIND)/3
# Combine damage arrays into a single array
MaxDmg = np.column_stack((MaxDmgRES, MaxDmgCOM, MaxDmgIND, MaxDmgUNI))
# Damage classes
DamageClasses = ['Residential', 'Commercial', 'Industrial','Universal']
def DamageFunction(wd1, coefs, wd_range=(0, 6)):
wd = np.clip(wd1, *wd_range)
y = coefs[0] * wd**5 + coefs[1] * wd**4 + coefs[2] * wd**3 \
+ coefs[3] * wd**2 + coefs[4] * wd + coefs[5]
y = np.clip(y, 0, 1)
return y
# Polynomial coefficients for each function
# - Up to 5th order
# - 1st value is highest order (5th) and last is intercept
coefs_UNI = [0.0, 0.0, 0.0, -0.02787, 0.3334, 0.0]
coefs_RES = [0.0005869, -0.01077, 0.07497, -0.2602, 0.5959, 0.0]
coefs_COM = [0.0, 0.0, -0.0009149, -0.02021, 0.3216, 0.0]
coefs_IND = [0.0, 0.0, -0.001202, -0.01225, 0.2852, 0.0]
coefs_TRS = [0.0, -0.00938, 0.07734, -0.2906, 0.7625, 0.0]
coefs_AGR = [0.0, -0.004601, 0.06114, -0.3061, 0.7773, 0.0]
# Plot Depth Damage Functions
# Water depth values from 0 to 6m
wd_values = np.linspace(0, 6, 100)
dmgRES = DamageFunction(wd_values, coefs_RES)
dmgCOM = DamageFunction(wd_values, coefs_COM)
dmgIND = DamageFunction(wd_values, coefs_IND)
dmgUNI = DamageFunction(wd_values, coefs_UNI)
if flagDamageCurve is True:
plt.plot(wd_values, dmgUNI, color='black', linewidth=2, label='Universal')
plt.plot(wd_values, dmgRES, color='darkgreen', linestyle='--', linewidth=1,
label='Residential')
plt.plot(wd_values, dmgCOM, color='blue', linestyle='--', linewidth=1,
label='Commercial')
plt.plot(wd_values, dmgIND, color='darkred', linestyle='--', linewidth=1,
label='Industrial')
plt.grid(color='grey', linestyle='-', linewidth=0.5)
plt.xlabel('Water Depth (m)')
plt.ylabel('Damage Fraction')
plt.title('JRC Residential, Commercial & Industrial Depth-Damage Functions')
plt.legend()
plt.show()
Retrieving data for the area of interest#
In this section the bounding box is used to crop the data to the area of interest. The code converts latitude and longitude values to the equivalent projection used by the flood map raster & writes bounding box to shapefile. We also define the bounding box for OpenStreetMap data.
If the region of interest is not as desired, the latitude and longitude values can be changed in the “Define inputs” section above.
#Set shape box location
shpBBox = os.path.join(dirOSM, 'bbox.shp')
# Determine Raster EPSG Code (only works with osgeo)
ds = gdal.Open(rastDepths)
srs = osr.SpatialReference()
srs.ImportFromWkt(ds.GetProjection())
epsgRast = f'EPSG:{srs.GetAuthorityCode(None)}'
ds = None
print(f'Water Depth Raster Projection: {epsgRast}')
# Create a transformer for coordinate conversion
transformer = Transformer.from_crs('EPSG:4326', epsgRast, always_xy=True)
# Convert bounding box coordinates to raster CRS
xMin, yMin = transformer.transform(Longitude1, Latitude1)
xMax, yMax = transformer.transform(Longitude2, Latitude2)
# Ensure xMin < xMax and yMin < yMax
xMin, xMax = min(xMin, xMax), max(xMin, xMax)
yMin, yMax = min(yMin, yMax), max(yMin, yMax)
print('Converted Coordinate Bounds:')
print(f' Longitudes: {Longitude1}E --> {xMin} meters & {Longitude2}E --> {xMax} meters')
print(f' Latitudes: {Latitude1}N --> {yMin} meters & {Latitude2}N --> {yMax} meters')
# Define the bounding box coordinates based on the zoomed region
bboxRast = box(xMin, yMin, xMax, yMax)
bounding_box = gpd.GeoDataFrame(geometry=[bboxRast], crs=epsgRast)
# Write the GeoDataFrame to a shapefile
bounding_box.to_file(shpBBox)
print('Bounding Box Shapefile written to: '+shpBBox)
# Read GeoDataFrame from the bounding box shapefile
gdfBBox = gpd.read_file(shpBBox)
crsRast = gdfBBox.crs
bboxRast = gdfBBox.total_bounds
# Adjust bounding box coordinates for OSM data
bboxOSM = bboxRast
bboxOSM[1] = Latitude1
bboxOSM[3] = Latitude2
bboxOSM[0] = Longitude1
bboxOSM[2] = Longitude2
# Create a GeoSeries representing the bounding box polygon
bboxOSM_poly = gpd.GeoSeries(
[Polygon([(bboxOSM[0], bboxOSM[1]), (bboxOSM[2], bboxOSM[1]),
(bboxOSM[2], bboxOSM[3]), (bboxOSM[0], bboxOSM[3])])],
crs=crsRast
)
bboxOSM_poly = bboxOSM_poly.to_crs(crsRast)
print(f' {str(Latitude1)}N to {str(Latitude2)}N')
print(f' {str(Longitude1)}E to {str(Longitude2)}E')
for RP in ImageReturnPeriod:
rastDepths = os.path.join(dirDepths, f'Europe_RP{RP}_filled_depth.tif')
# Read the raster using rasterio
with rasterio.open(rastDepths) as src:
window = from_bounds(xMin, yMin, xMax, yMax, src.transform)
rDepths = src.read(1, window=window)
rDepths = np.ma.masked_where((rDepths < -999) | (rDepths > 1000), rDepths)
# Compute the maximum value from the masked data
max_depth = rDepths.max()
# Find the closest integer
maxDepthLegend = ((max_depth // 1) + 1)
missing_data_value = src.nodata
# Check select bounding latitude-longitude box
fig, ax = plt.subplots()
im = ax.imshow(rDepths, vmin=0, vmax=maxDepthLegend, cmap=cmap_h2o, extent=(xMin, xMax, yMin, yMax),
zorder=2, alpha=0.7)
plt.title(f'River flood map with {RP}-year return period')
plt.xlabel('Longitude', fontsize='small')
plt.ylabel('Latitude', fontsize='small')
divider = make_axes_locatable(ax)
cax = divider.append_axes("right", size="2%", pad=0.1)
plt.colorbar(im, cax=cax,label='Depth (m)',extend='max')
plt.text(.02,.02,f'Projection in {epsgRast}', fontsize=8,
path_effects=[pe.withStroke(linewidth=3, foreground="white")], transform=ax.transAxes)
ctx.add_basemap(ax=ax, crs=epsgRast, source=ctx.providers.OpenStreetMap.Mapnik, attribution_size='6', alpha=0.5)
txt = ax.texts[-1]
txt.set_position([0.99,0.98])
txt.set_ha('right')
txt.set_va('top')
plt.show()
##--------------------------------------------------------
## Population map
# Open the raster file
ds = gdal.Open(rastPopulation)
if ds is None:
raise RuntimeError(f"Failed to open the raster file: {rastPopulation}")
# Get the projection from the raster file
proj_wkt = ds.GetProjection()
srs = osr.SpatialReference()
srs.ImportFromWkt(proj_wkt)
# Try to get the EPSG code
epsg_code = srs.GetAuthorityCode(None)
# Check if the EPSG code was successfully retrieved
if epsg_code is None:
# If not, you might need to handle specific cases manually
# Check if the projection matches known projections
proj4_str = srs.ExportToProj4()
if '+proj=moll' in proj4_str and '+datum=WGS84' in proj4_str:
epsg_code = 'EPSG:54009' # ESRI:54009 World Mollweide projection
else:
raise RuntimeError("Unable to determine EPSG code for the given projection.")
else:
epsg_code = f"EPSG:{epsg_code}"
epsgRastPop = epsg_code
# Close the dataset
ds = None
print(f'Population Raster Projection: {epsgRastPop}')
# Create a transformer for coordinate conversion
if epsg_code == 'EPSG:54009':
PopProj = '+proj=moll +datum=WGS84 +units=m' #MOLLWEIDE HAS TO BE MANUALLY INSERTED
else:
PopProj = epsg_code
transformer = Transformer.from_crs('EPSG:4326', PopProj, always_xy=True)
# Convert bounding box coordinates to raster CRS
xMinPop, yMinPop = transformer.transform(Longitude1, Latitude1)
xMaxPop, yMaxPop = transformer.transform(Longitude2, Latitude2)
# Ensure xMin < xMax and yMin < yMax
xMinPop, xMaxPop = min(xMinPop, xMaxPop), max(xMinPop, xMaxPop)
yMinPop, yMaxPop = min(yMinPop, yMaxPop), max(yMinPop, yMaxPop)
print('Converted Coordinate Bounds:')
print(f' Longitudes: {Longitude1}E --> {xMinPop} meters & {Longitude2}E --> {xMaxPop} meters')
print(f' Latitudes: {Latitude1}N --> {yMinPop} meters & {Latitude2}N --> {yMaxPop} meters')
# Read the raster using rasterio
with rasterio.open(rastPopulation) as src:
window = from_bounds(xMinPop, yMinPop, xMaxPop, yMaxPop, src.transform)
rPopulation = src.read(1, window=window)
rPopulation = np.ma.masked_where((rPopulation < 0.1), rPopulation)
max_population = rPopulation.max()
maxPopLegend = ((max_population // 100) + 1) * 100
missing_data_value = src.nodata
fig, ax = plt.subplots()
im = ax.imshow(rPopulation, vmin=0, vmax=maxPopLegend, cmap=cmap_pop, extent=(xMinPop, xMaxPop, yMinPop, yMaxPop),
zorder=2, alpha=0.7)
plt.title(f'Population Raster for the year {PopYear}')
plt.xlabel('Longitude', fontsize='small')
plt.ylabel('Latitude', fontsize='small')
divider = make_axes_locatable(ax)
cax = divider.append_axes("right", size="2%", pad=0.1)
plt.colorbar(im, cax=cax,label='People',extend='max')
plt.text(.02,.02,f'Projection in {epsgRastPop}', fontsize=8,
path_effects=[pe.withStroke(linewidth=3, foreground="white")], transform=ax.transAxes)
ctx.add_basemap(ax=ax, crs=epsgRastPop, source=ctx.providers.OpenStreetMap.Mapnik, attribution_size='6', alpha=1)
txt = ax.texts[-1]
txt.set_position([0.99,0.98])
txt.set_ha('right')
txt.set_va('top')
plt.show()
Water Depth Raster Projection: EPSG:4326
Converted Coordinate Bounds:
Longitudes: 11.26E --> 11.26 meters & 11.27E --> 11.27 meters
Latitudes: 43.77N --> 43.77 meters & 43.78N --> 43.78 meters
Bounding Box Shapefile written to: .\OSM\bbox.shp
43.77N to 43.78N
11.26E to 11.27E
Population Raster Projection: EPSG:4326
Converted Coordinate Bounds:
Longitudes: 11.26E --> 11.26 meters & 11.27E --> 11.27 meters
Latitudes: 43.77N --> 43.77 meters & 43.78N --> 43.78 meters
OpenStreetMap buildings data#
In this section the OSM data are loaded based on the bounding box defined above. The extracted data represents the building use (unclassified) and is written to a shapefile.
# Output shapefile for unclassified buildings
shpOSM = os.path.join(dirOSM, 'OSM_Building_Unclassified.shp')
# Define tags for OSM data
tags = {'building': True,'amenity': True}
# Retrieve OSM geometries within the bounding box
gdfOSM = ox.features_from_polygon(bboxOSM_poly.iloc[0], tags)
# Filter out non-Polygon geometries
gdfOSM = gdfOSM[gdfOSM.geom_type == 'Polygon']
# Confirm that all of the GDF elements are compatible with shp format
gdfOSM = gdfOSM.map(lambda x: str(x) if isinstance(x, list) else x)
# Clip the OSM data to the bounding box
gdfOSM = gpd.clip(gdfOSM, bboxOSM)
# Save the polygon-only gdp to shapefile
warnings.simplefilter("ignore",category=UserWarning) #Removing UserWarning regarding truncated columns when saving to ESRI Shapefile
gdfOSM.to_file(shpOSM, driver='ESRI Shapefile', encoding='utf-8')
warnings.resetwarnings()
print('OSM data read in and saved to shapefile')
print(' '+shpOSM)
if flagBuilding is True:
# Plot data
fig, ax = plt.subplots() # Adjust figsize as needed
plt.title('OSM Buildings: Prior to residential, commericial and industrial classification')
plt.xlabel('Longitude', fontsize='small')
plt.ylabel('Latitude', fontsize='small')
plt.text(.02,.02,f'Projection in {gdfOSM.crs}', fontsize=8,
path_effects=[pe.withStroke(linewidth=3, foreground="white")], transform=ax.transAxes)
plot = gdfOSM.plot(column='building',ax=ax, legend=True, cmap='coolwarm',
legend_kwds={'ncol': 3, 'bbox_to_anchor': (.5, -0.11), 'loc': 'upper center', 'title': 'Building Legend:'})
ctx.add_basemap(ax=ax, crs=gdfOSM.crs, source=ctx.providers.OpenStreetMap.Mapnik, attribution_size='6', alpha=0.5)
txt = ax.texts[-1]
txt.set_position([0.99,0.98])
txt.set_ha('right')
txt.set_va('top')
plt.show()
OSM data read in and saved to shapefile
.\OSM\OSM_Building_Unclassified.shp
Reproject OSM data to raster projection#
In this section, in order to perform the damage analysis, the OSM and raster data need to be on the same Coordinate Reference System (CRS). The OSM are on an EPSG:4326 CRS and the raster data could be another. In the cell, the OSM data are converted to match the raster CRS.
# Determine CRSs from shapefile and Raster
crsOSM = gdfOSM.crs
if crsOSM not in (epsgRast, epsgRast.lower()):
print(f'Reprojecting from OSM {crsOSM} to raster EPSG:{epsgRast}')
# Read the GeoDataFrame if reprojection is needed
gdfOSM = gpd.read_file(shpOSM)
# Reproject the GeoDataFrame to match the raster CRS
gdfOSM = gdfOSM.to_crs(epsg=epsgRast)
# Save the reprojected data back to the shapefile
gdfOSM.to_file(shpOSM)
print(' Overwriting reprojected data:', shpOSM)
else:
print('No reprojection performed. Both projections are the same:', crsOSM)
print('Done')
No reprojection performed. Both projections are the same: epsg:4326
Done
Building classifications#
In this section, the building types are classified to Residential, Commercial, Industrial, etc.
This procedure needs to be performed manually by looking at the list of building types.
If None is listed for a building class (bldgClass column), the building type (building column) should be assigned to one of the lists (e.g., classResidential, classCommercial, classIndustrial).
Buildings with type “yes” will be classified as Universal by default in a later step.
As calculated in an earlier section, the Universal class has a damage curve equal to the average of the Residential, Commercial, and Industrial ones.
Below we have added a classification of OSM building types already.
# CSV file with classifications (classResidential, classCommercial, etc)
csvOSMclasses = os.path.join(dirOSM, 'OSM_Building_Reclassified.csv')
csvOSMamenity = os.path.join(dirOSM, 'OSM_Amenity_Classified.csv')
# Keep only the building and geometry columns
gdfBuildings = gdfOSM[['building','amenity','geometry']].copy()
# Building classifications
# - Change and add as needed,
classResidential = ['hut', 'apartments', 'detached', 'residential', 'house', 'barn', 'garage',
'carport', 'semidetached_house', 'shed', 'bungalow', 'roof', 'terrace',
'allotment_house']
classCommercial = ['commercial', 'office', 'retail', 'kiosk', 'supermarket', 'warehouse',
'garages', 'hotel', 'stadium', 'grandstand', 'sports_centre', 'pavilion',
'government', 'school', 'kindergarten', 'university', 'dormitory', 'public',
'service', 'hospital', 'civic', 'terminal', 'fire_station',
'train_station', 'boathouse', 'toilets', 'tech_cab', 'tower', 'portal',
'columbarium', 'greenhouse', 'guardhouse', 'construction',
'funeral_hall']
classIndustrial = ['industrial', 'manufacture']
classCultural = ['church', 'cathedral', 'baptistery', 'obelisk', 'basilica', 'monastery', 'ruins',
'column', 'chapel', 'synagogue', 'shrine', 'religious', 'convent', 'fort']
classAgricultural = ['farm_auxiliary']
classTransportation = ['bridge', 'parking']
classUniversal = ['universal']
# Critical infrastructure, add infrastructure of interest -------
criticalInfrastructureList = ['hospital','fuel','bank','clinic','pharmacy','fire_station',
'police','prison','refugee_site',
'train_station','transformer_tower','water_tower','bridge',
'transportation']
# This affects the look of the maps in the 'Critical Infrastructure' section
critMarkersColours = {
'hospital': {'marker': 's', 'color': 'red'},
'police': {'marker': '^', 'color': 'blue'},
'train_station': {'marker': 'o', 'color': 'green'},
'transformer_tower': {'marker': '*', 'color': 'purple'},
'water_tower': {'marker': 'x', 'color': 'orange'},
'bridge': {'marker': 'd', 'color': 'brown'},
'fire_station': {'marker': '+', 'color': 'pink'},
'transportation': {'marker': '>', 'color': 'cyan'},
'refugee_site': {'marker': 'o', 'color': 'brown'},
'fuel': {'marker': '.', 'color': 'yellow'},
'bank': {'marker': 'd', 'color': 'magenta'}
}
# For now, set transportation and cultural to universal (can add/change if desired)
classUniversal = classUniversal + classCultural + classAgricultural + classTransportation
classCultural = []
classAgricultural = []
classTransportation = []
# Convert building classes to dataframe
bldgClasses = pd.DataFrame({'building': gdfBuildings['building'].unique()})
# Classify each structure to Residential, Commercial, Industrial, etc.
# - Structures not listed in above class lists are classified as none
bldgClasses['bldgClass'] = None
bldgClasses.loc[bldgClasses['building'].isin(classResidential), 'bldgClass'] = 'Residential'
bldgClasses.loc[bldgClasses['building'].isin(classCommercial), 'bldgClass'] = 'Commercial'
bldgClasses.loc[bldgClasses['building'].isin(classIndustrial), 'bldgClass'] = 'Industrial'
bldgClasses.loc[bldgClasses['building'].isin(classCultural), 'bldgClass'] = 'Cultural'
bldgClasses.loc[bldgClasses['building'].isin(classAgricultural), 'bldgClass'] = 'Agricultural'
bldgClasses.loc[bldgClasses['building'].isin(classTransportation), 'bldgClass'] = 'Transportation'
bldgClasses.loc[bldgClasses['building'].isin(classUniversal), 'bldgClass'] = 'Universal'
# - Adding critical infrastructure
bldgClasses['critInfrastructure'] = None
bldgClasses.loc[bldgClasses['building'].isin(criticalInfrastructureList), 'critInfrastructure'] = True
amenityClasses = pd.DataFrame({'amenity': gdfBuildings['amenity'].unique()})
amenityClasses['critInfrastructure'] = None
amenityClasses.loc[amenityClasses['amenity'].isin(criticalInfrastructureList), 'critInfrastructure'] = True
# Write structure and classification to CSV
bldgClasses.to_csv(csvOSMclasses, index=False)
amenityClasses.to_csv(csvOSMamenity, index=False)
print('Building Classifications')
print(' - If None is listed for a building class, add the building one of the above lists.')
print(" - Building 'yes' will be classified as Universal in a later step.")
print(bldgClasses)
print(amenityClasses)
Building Classifications
- If None is listed for a building class, add the building one of the above lists.
- Building 'yes' will be classified as Universal in a later step.
building bldgClass critInfrastructure
0 yes None None
1 apartments Residential None
2 semidetached_house Residential None
3 government Commercial None
4 NaN None None
5 retail Commercial None
6 roof Residential None
7 shed Residential None
8 commercial Commercial None
9 office Commercial None
10 service Commercial None
11 industrial Industrial None
12 church Universal None
13 synagogue Universal None
14 house Residential None
15 hotel Commercial None
16 toilets Commercial None
17 school Commercial None
18 hospital Commercial True
19 public Commercial None
20 garages Commercial None
21 kindergarten Commercial None
22 university Commercial None
23 civic Commercial None
24 bridge Universal True
25 greenhouse Commercial None
amenity critInfrastructure
0 NaN None
1 university None
2 marketplace None
3 parking_entrance None
4 place_of_worship None
5 school None
6 grave_yard None
7 hospital True
8 shelter None
9 theatre None
10 parking None
11 social_facility None
12 fountain None
In the code below, the building types are classified and written to a ShapeFile with a column.
The first map shows the buildings that have been classified based on the above assignments.
The second map shows the same, but the with building type “yes” classified as Universal. The difference between the maps provides an idea of the how many building have a type assigned to them.
# Shapefile name with reclassied buildings (output)
shpOSMreclass = os.path.join(dirOSM,'OSM_Building_Reclassified.shp')
# Building classification created earlier
bldgClasses = pd.read_csv(csvOSMclasses)
# Merge the spatial data with the new information
gdfOSMreclass = pd.merge(gdfOSM, bldgClasses, on='building', how='left')
if flagBuilding is True:
# Plot without unclassified buildings
ax = gdfOSMreclass.plot(column='bldgClass', legend=True, cmap=cmap_cls)
plt.title('Building Data without Unclassified Buildings')
plt.xlabel('Longitude', fontsize='small')
plt.ylabel('Latitude', fontsize='small')
cax = fig.add_axes([ax.get_position().x1+0.03,ax.get_position().y0,
0.015,ax.get_position().height],)
plt.text(.02,.02,f'Projection in {gdfOSMreclass.crs}', fontsize=8,
path_effects=[pe.withStroke(linewidth=3, foreground="white")], transform=ax.transAxes)
ctx.add_basemap(ax=ax, crs=gdfOSMreclass.crs, source=ctx.providers.OpenStreetMap.Mapnik, attribution_size='6', alpha=0.6)
txt = ax.texts[-1]
txt.set_position([0.99,0.98])
txt.set_ha('right')
txt.set_va('top')
plt.show()
# Substitute commercial for undefined (null) building classes
gdfOSMreclass['bldgClass'] = gdfOSMreclass['bldgClass'].fillna('Universal')
# Write classified structures to file
warnings.simplefilter("ignore",category=UserWarning) #Removing UserWarning regarding truncated columns when saving to ESRI Shapefile
gdfOSMreclass.to_file(shpOSMreclass, encoding='utf-8')
warnings.resetwarnings()
if flagBuilding is True:
# Plot with unclassified buildings as commercial
ax = gdfOSMreclass.plot(column='bldgClass', legend=True, cmap=cmap_cls)
plt.title('Building Data with Unclassified Buildings as Universal Class')
plt.xlabel('Longitude', fontsize='small')
plt.ylabel('Latitude', fontsize='small')
cax = fig.add_axes([ax.get_position().x1+0.03,ax.get_position().y0,
0.015,ax.get_position().height],)
plt.text(.02,.02,f'Projection in {gdfOSMreclass.crs}', fontsize=8,
path_effects=[pe.withStroke(linewidth=3, foreground="white")], transform=ax.transAxes)
ctx.add_basemap(ax=ax, crs=gdfOSMreclass.crs, source=ctx.providers.OpenStreetMap.Mapnik, attribution_size='6', alpha=0.6)
txt = ax.texts[-1]
txt.set_position([0.99,0.98])
txt.set_ha('right')
txt.set_va('top')
plt.show()
Flood depths at building locations#
In this section, the flood map rasters for each return period (extreme event) are loaded.
The rasters are then translated to flood depths for each building based on the desired statistic (mean, maximum or minimum depth or all three).
For each return period a plot of a flood map can be generated as well as a plot with the flood depths corresponding to each building.
for RP in ReturnPeriods:
print("Computing Building Water Depths: RP=", str(RP))
print(' Loading water depth for selected bounds: RP=', str(RP))
rastDepths = os.path.join(dirDepths, f'Europe_RP{RP}_filled_depth.tif')
rastDepths_zoom = rastDepths.replace('.tif', '_zoom.tif')
print(f' {rastDepths}')
# Keep only the building, bldgClass and geometry columns
gdfDamage = gdfOSMreclass[['building', 'bldgClass', 'geometry']].copy()
# Compute building areas in m2
gdfDamage_ESPG3035=gdfDamage.to_crs(3035)
gdfDamage['Area_m2'] = gdfDamage_ESPG3035.geometry.area
# Read the raster using rasterio
with rasterio.open(rastDepths) as src:
window = from_bounds(xMin, yMin, xMax, yMax, src.transform)
rDepths = src.read(1, window=window)
rDepths = np.ma.masked_where((rDepths < -999) | (rDepths > 1000), rDepths)
missing_data_value = src.nodata
with rasterio.open(
rastDepths_zoom,
'w',
driver='GTiff',
height=rDepths.shape[0],
width=rDepths.shape[1],
count=1,
dtype=rDepths.dtype,
crs=src.crs,
transform=src.window_transform(window),
max_depth = rDepths.max(),
maxDepthLegend = ((max_depth // 1) + 1),
nodata=missing_data_value
) as dst:
dst.write(rDepths, 1)
# Perform zonal statistics directly on the raster array
result = rasterstats.zonal_stats(
#gdfDamage.to_crs(src.crs),
gdfDamage,
rDepths,
nodata=src.nodata,
affine=src.window_transform(window),
stats=['mean', 'min', 'max'],
all_touched=True
)
# Update geodataframe with zonal statistics
gdfDamage["MeanDepth"] = [entry["mean"] for entry in result]
gdfDamage["MinDepth"] = [entry["min"] for entry in result]
gdfDamage["MaxDepth"] = [entry["max"] for entry in result]
if RP in ImageReturnPeriod and flagBuildingH2o is True:
# Plot rasters
fig, ax = plt.subplots()
plt.title(f'Buildings map and river flood map with {RP}-year return period')
plt.xlabel('Longitude', fontsize='small')
plt.ylabel('Latitude', fontsize='small')
im = ax.imshow(rDepths, vmin=0, vmax=maxDepthLegend, cmap=cmap_h2o, extent=(xMin, xMax, yMin, yMax),
zorder=1, alpha=0.8)
divider = make_axes_locatable(ax)
cax = divider.append_axes("right", size="2%", pad=0.1)
plt.colorbar(im, cax=cax,label='Depth (m)',extend='max')
plt.text(.02,.02,f'Projection in {epsgRast}', fontsize=8,
path_effects=[pe.withStroke(linewidth=3, foreground="white")], transform=ax.transAxes)
gdfDamage.plot(ax=ax, edgecolor='grey', linewidth=0.25, facecolor='none')
ctx.add_basemap(ax=ax, crs=epsgRast, source=ctx.providers.OpenStreetMap.Mapnik, attribution_size='6', alpha=0.4)
txt = ax.texts[-1]
txt.set_position([0.99,0.98])
txt.set_ha('right')
txt.set_va('top')
plt.show()
# Map depths > 0 at building level
gdf_filtered = gdfDamage[gdfDamage['MeanDepth'] > 0]
fig, ax = plt.subplots()
plt.title(f'Mean flood depth at building locations \n derived from the flood map with {RP}-year return period')
plt.xlabel('Longitude', fontsize='small')
plt.ylabel('Latitude', fontsize='small')
plot = gdf_filtered.plot(column='MeanDepth', vmin=0, vmax=maxDepthLegend, cmap=cmap_h2o, ax=ax)
divider = make_axes_locatable(ax)
cax = divider.append_axes("right", size="2%", pad=0.1)
plt.colorbar(plot.collections[0], cax=cax,label='Depth (m)',extend='max')
plt.text(.02,.02,f'Projection in {epsgRast}', fontsize=8,
path_effects=[pe.withStroke(linewidth=3, foreground="white")], transform=ax.transAxes)
ctx.add_basemap(ax=ax, crs=gdf_filtered.crs, source=ctx.providers.OpenStreetMap.Mapnik, attribution_size='6', alpha=0.9)
txt = ax.texts[-1]
txt.set_position([0.99,0.98])
txt.set_ha('right')
txt.set_va('top')
plt.show()
# Save the updated geodataframe to a shapefile
shpDepths = os.path.join(dirResults, f'Depths_Building_RP{RP}.shp')
gdfDamage.to_file(shpDepths, driver='ESRI Shapefile')
print('Done')
Computing Building Water Depths: RP= 10
Loading water depth for selected bounds: RP= 10
.\data\Europe_RP10_filled_depth.tif
Computing Building Water Depths: RP= 30
Loading water depth for selected bounds: RP= 30
.\data\Europe_RP30_filled_depth.tif
Computing Building Water Depths: RP= 75
Loading water depth for selected bounds: RP= 75
.\data\Europe_RP75_filled_depth.tif
Computing Building Water Depths: RP= 100
Loading water depth for selected bounds: RP= 100
.\data\Europe_RP100_filled_depth.tif
Computing Building Water Depths: RP= 200
Loading water depth for selected bounds: RP= 200
.\data\Europe_RP200_filled_depth.tif
Computing Building Water Depths: RP= 500
Loading water depth for selected bounds: RP= 500
.\data\Europe_RP500_filled_depth.tif
Done
Calculating economic damage to buildings#
Based on the flood water depths, the damage to the buildings (reconstruction costs) and for its contents are determined.
First the fractional building damage is calculated applying the JRC damage functions for each classifiction (residential, commerical, etc).
Then the fractional damage is multiplied with the maximum damage value per square meter and the building footprint area in meters and written to a shapefile.
The damages in millions of Euros summed over all of the classes and plotted for each return period level.
for RP in ReturnPeriods:
# Read Building Water Depth Shapefile
shpDepths = os.path.join(dirResults, f'Depths_Building_RP{str(RP)}.shp')
gdfDamage = gpd.read_file(shpDepths)
for Depth in Depths:
if Depth == 'Mean':
depthStat = 'mean'
elif Depth == 'Max':
depthStat = 'max'
elif Depth == 'Min':
depthStat = 'min'
else:
print('Depth statistic does not exist.')
print(' Current options are Mean, Max, and Min')
sys.exit()
print(f'Computing damage for {Depth.lower()} building depth. RP={str(RP)}.')
statName = depthStat.title() + 'Depth'
# Compute the damage factor for each building class
gdfDamage['TotDamage'] = 0 # Initialize TotalDamage column
for dmgClass in DamageClasses:
bldgDamage='f'+dmgClass[:3].upper()+depthStat
dmgName = 'Dmg'+bldgDamage[1:]
# Damage factors and maximum damage value including contents
if dmgClass == 'Residential':
gdfDamage[bldgDamage] = DamageFunction(gdfDamage[statName], coefs_RES)
MaxDmg = MaxDmgRES.sum()
elif dmgClass == 'Commercial':
gdfDamage[bldgDamage] = DamageFunction(gdfDamage[statName], coefs_COM)
MaxDmg = MaxDmgCOM.sum()
elif dmgClass == 'Industrial':
gdfDamage[bldgDamage] = DamageFunction(gdfDamage[statName], coefs_IND)
MaxDmg = MaxDmgIND.sum()
elif dmgClass == 'Transportation':
gdfDamage[bldgDamage] = DamageFunction(gdfDamage[statName], coefs_TRS)
MaxDmg = MaxDmgTRS.sum()
elif dmgClass == 'Agriculture':
gdfDamage[bldgDamage] = DamageFunction(gdfDamage[statName], coefs_AGR)
MaxDmg = MaxDmgAGR.sum()
elif dmgClass == 'Universal':
gdfDamage[bldgDamage] = DamageFunction(gdfDamage[statName], coefs_UNI)
MaxDmg = MaxDmgUNI.sum()
else:
gdfDamage[bldgDamage] = DamageFunction(gdfDamage[statName], coefs_UNI)
MaxDmg = MaxDmgUNI.sum()
# Damage computation
gdfDamage.loc[gdfDamage['bldgClass'] != dmgClass, bldgDamage] = 0
gdfDamage[dmgName] = gdfDamage[bldgDamage] * gdfDamage['Area_m2'] * MaxDmg
# Add TotalDamage in millions of €
gdfDamage['TotDamage'] += gdfDamage[dmgName] / 10**6
gdfDamage.to_file(shpDepths, driver='ESRI Shapefile')
# Plotting the GeoDataFrame with filtered values
if RP in ImageReturnPeriod and flagBuildingDmg is True:
fig, ax = plt.subplots() # Adjust figsize as needed
plt.title(f'Damage to buildings by {Depth.lower()} flood depth\nbased on the flood map with {str(RP)}-year return period')
plt.xlabel('Longitude', fontsize='small')
plt.ylabel('Latitude', fontsize='small')
plot = gdfDamage.plot(column='TotDamage', cmap=cmap_dmg, ax=ax,zorder=2)
divider = make_axes_locatable(ax)
cax = divider.append_axes("right", size="2%", pad=0.1)
plt.colorbar(plot.collections[0], cax=cax,label='Damage (Mil €)',extend='max')
plt.text(.02,.02,f'Projection in {gdfDamage.crs}', fontsize=8,path_effects=[pe.withStroke(linewidth=3, foreground="white")], transform=ax.transAxes)
ctx.add_basemap(ax=ax, crs=gdfDamage.crs, source=ctx.providers.OpenStreetMap.Mapnik, attribution_size='6', alpha=0.9)
txt = ax.texts[-1]
txt.set_position([0.99,0.98])
txt.set_ha('right')
txt.set_va('top')
plt.show()
print('Done computing damage for each building')
Computing damage for mean building depth. RP=10.
Computing damage for max building depth. RP=10.
Computing damage for min building depth. RP=10.
Computing damage for mean building depth. RP=30.
Computing damage for max building depth. RP=30.
Computing damage for min building depth. RP=30.
Computing damage for mean building depth. RP=75.
Computing damage for max building depth. RP=75.
Computing damage for min building depth. RP=75.
Computing damage for mean building depth. RP=100.
Computing damage for max building depth. RP=100.
Computing damage for min building depth. RP=100.
Computing damage for mean building depth. RP=200.
Computing damage for max building depth. RP=200.
Computing damage for min building depth. RP=200.
Computing damage for mean building depth. RP=500.
Computing damage for max building depth. RP=500.
Computing damage for min building depth. RP=500.
Done computing damage for each building
Total damage to buildings#
In this section the total damage for the region of interest is summed and written to a CSV file.
nDmg = np.append(DamageClasses, 'Total')
dfDMGs = pd.DataFrame(columns=[])
dfDMGs.index = nDmg
dfDMGs.index.name = 'Building Class'
for Depth in Depths:
if Depth not in ['Mean', 'Max', 'Min']:
print('Depth statistic does not exist.')
print(' Current options are Mean, Minimum, and Maximum')
sys.exit()
print(f'Damage for {Depth} depth')
for RP in ReturnPeriods:
shpOSM = os.path.join(dirResults, f'Depths_Building_RP{RP}.shp')
gdfOSM = gpd.read_file(shpOSM)
vDmg = pd.DataFrame(columns=[])
for dmgClass in DamageClasses:
dmgName = f'DmgTRS{Depth.lower()}' if dmgClass == 'Transportation' else \
f'Dmg{dmgClass[:3].upper()}{Depth.lower()}'
vDmg = np.append(vDmg, gdfOSM[dmgName].sum())
totDmg = sum(vDmg)
vDmg = np.append(vDmg, totDmg)
totDmg_byclass = pd.DataFrame(vDmg)
# Assign names to the dataframe headers
totDmg_byclass.columns = [f'{RP}-yr']
totDmg_byclass.index = [nDmg]
# Compute the total damage across the entire area of interest
print(f' RP={RP}: Total damage (€) = {round(totDmg, 3)}')
dfDMGs[f'{RP}-yr'] = np.array(totDmg_byclass)
damage_csv_filename = os.path.join(dirResults, f'DamageTotal_{Depth}.csv')
dfDMGs.to_csv(damage_csv_filename)
print('Done')
Damage for Mean depth
RP=10: Total damage (€) = 184578351.621
RP=30: Total damage (€) = 241918464.399
RP=75: Total damage (€) = 274642314.117
RP=100: Total damage (€) = 280669191.409
RP=200: Total damage (€) = 300949558.896
RP=500: Total damage (€) = 322947697.32
Damage for Max depth
RP=10: Total damage (€) = 209245278.122
RP=30: Total damage (€) = 277128668.104
RP=75: Total damage (€) = 309265469.354
RP=100: Total damage (€) = 317991624.967
RP=200: Total damage (€) = 337263663.9
RP=500: Total damage (€) = 358974495.536
Damage for Min depth
RP=10: Total damage (€) = 142428918.76
RP=30: Total damage (€) = 188154063.322
RP=75: Total damage (€) = 221415002.689
RP=100: Total damage (€) = 223985407.905
RP=200: Total damage (€) = 246567120.639
RP=500: Total damage (€) = 268966738.845
Done
Expected annual damage#
In this section the plot of building damages vs return periods of the flood maps is generated. Moreover, by integrating the curve, an estimate of the expected annual damage (EAD) in millions of Euros is provided. EAD is the damage that the region would expect on average in any given year.
max_yaxis=0
vert_spacer=0
for Depth in Depths:
if Depth == 'Mean':
depthStat = 'mean'
elif Depth == 'Max':
depthStat = 'max'
elif Depth == 'Min':
depthStat = 'min'
else:
print('Depth statistic does not exist.')
print(' Current options are Mean, Minimum, and Maximum')
sys.exit()
# Load damage data for the current depth statistic
damage_csv_filename = os.path.join(dirResults, f'DamageTotal_{Depth}.csv')
dfDMGs = pd.read_csv(damage_csv_filename, index_col=0)
# Compute the total Estimated Annual Damage (EAD) over all return periods
probRPs = 1 / np.array(ReturnPeriods)
iTot = dfDMGs.index.get_loc('Total')
EAD = 0
for iRP in range(len(ReturnPeriods)-1):
diffRP = probRPs[iRP] - probRPs[iRP+1]
avgDMG = (dfDMGs.iloc[iTot, iRP+1] + dfDMGs.iloc[iTot, iRP]) / 2
EAD = EAD + avgDMG * diffRP
graphText = f'{Depth} Expected Annual Damage: {round(EAD/10**6, 2)} Mil €'
# Plot estimated direct damage vs exceedance probability
if flagBuildingDmgGraph is True:
totDmg = dfDMGs.loc['Total'] / 10**6
max_yaxis_current=totDmg.max()
max_yaxis=max(max_yaxis,max_yaxis_current)
plt.plot(np.array(ReturnPeriods), totDmg, marker='o', linestyle='-')
plt.ylim(0)
plt.grid(which='both', linestyle=':', linewidth=0.5, color='gray',dashes=(1,5))
plt.xlabel('Event return period (Years)')
plt.ylabel('Estimated Direct Damage (Mil €)')
plt.text(0.96, 0.05+vert_spacer, graphText, transform=plt.gca().transAxes, fontsize=10,
verticalalignment='bottom', horizontalalignment='right', bbox=dict(facecolor='white', alpha=0.5, edgecolor='black'))
print(graphText)
vert_spacer=vert_spacer+0.08
yaxis_buffer=50 #This sets the y axis max to be the smallest multiple larger than the max value (eg: if yaxis_buffer=100, and the max value is 280, the yaxis max will be 300)
plt.ylim(0, ((max_yaxis // yaxis_buffer) + 1) * yaxis_buffer)
if len(Depths) > 1:
plt.legend(Depths,title="Flood depth used at\nbuilding location:",fontsize='small',title_fontsize='small',
loc='upper left', bbox_to_anchor=(1, 1),
fancybox=True)
plt.title(f'Estimated damage to buildings based on\nflood depth at building locations')
else:
plt.title(f'Estimated damage to buildings based on\n{Depth.lower()} flood depth at building locations')
plt.show()
Mean Expected Annual Damage: 22.7 Mil €
Max Expected Annual Damage: 25.8 Mil €
Min Expected Annual Damage: 17.81 Mil €
Critical Infrastructure#
In order to visualise the exposure of critical infrastructure for the area of interest, the OSM dataset is used:
Markers and colours are attributed for each type of critical infrastructure.
Flood water depths are read.
Critical infrastructure and floods are mapped together.
Note that preference will be given to amenity classes over building classes, to avoid duplicates. Therefore there might be cases where certain OSM entries will not show up in the map.
# Ensure the critical column is boolean
gdfOSMreclass['critInfrastructure'] = gdfOSMreclass['critInfrastructure'].infer_objects(copy=False)
for RP in ImageReturnPeriod:
rastDepths = os.path.join(dirDepths, f'Europe_RP{RP}_filled_depth_zoom.tif')
# Read the TIFF image
with rasterio.open(rastDepths) as src:
rDepths = src.read(1) # Reading the first band
rDepths = np.ma.masked_where((rDepths < -999) | (rDepths > 1000), rDepths)
# Compute the maximum value from the masked data
max_depth = rDepths.max()
# Find the closest integer above the max_depth value
maxDepthLegend = ((max_depth // 1) + 1)
missing_data_value = src.nodata
fig=plt.figure()
ax = plt.axes()
im = ax.imshow(rDepths, vmin=0, vmax=maxDepthLegend, cmap=cmap_h2o, extent=(xMin, xMax, yMin, yMax),
zorder=1, alpha=0.6)
plt.title(f'Critical infrastructure exposure to river floods with {RP}-year return period')
divider = make_axes_locatable(ax)
plt.xlabel('Longitude', fontsize='small')
plt.ylabel('Latitude', fontsize='small')
cax = divider.append_axes("right", size="2%", pad=0.1)
plt.colorbar(im, cax=cax,label='Depth (m)',extend='max')
plt.text(.02,.02,f'Projection in {gdfDamage.crs}', fontsize=8,
path_effects=[pe.withStroke(linewidth=3, foreground="white")], transform=ax.transAxes)
# Collect critical buildings for all building types
for building_type, props in critMarkersColours.items():
markerItem = props['marker']
colourItem = props['color']
if building_type in gdfOSMreclass['amenity'].unique():
crit_buildings = gdfOSMreclass[gdfOSMreclass['amenity'] == building_type]
crit_buildings = crit_buildings.to_crs('+proj=cea').centroid.to_crs(crit_buildings.crs)
crit_buildings.plot(ax=ax, marker=markerItem, color='black', markersize=45, label=None) #marker outline
crit_buildings.plot(ax=ax, marker=markerItem, color=colourItem, markersize=20, label=f'{building_type.capitalize()}')
elif building_type in gdfOSMreclass['building'].unique():
crit_buildings = gdfOSMreclass[gdfOSMreclass['building'] == building_type]
crit_buildings = crit_buildings.to_crs('+proj=cea').centroid.to_crs(crit_buildings.crs)
crit_buildings.plot(ax=ax, marker=markerItem, color='black', markersize=45, label=None) #marker outline
crit_buildings.plot(ax=ax, marker=markerItem, color=colourItem, markersize=20, label=f'{building_type.capitalize()}')
# Optionally, add basemap if needed
ctx.add_basemap(ax=ax, crs=gdfDamage.crs, source=ctx.providers.OpenStreetMap.Mapnik, attribution_size='6', alpha=0.5)
txt = ax.texts[-1]
txt.set_position([0.99,0.98])
txt.set_ha('right')
txt.set_va('top')
#Legend
legend = ax.legend(loc='upper center', ncol=4, bbox_to_anchor=(0.5, -0.11),
title='Critical infrastructure type:')
ax.tick_params(direction='out', length=8, width=.8,
labelsize=7)
plt.show()
Exposed population#
Based on the flood depth maps, the exposed population is determined.
The population and flood rasters are compared.
The exposed population is written to a CSV file.
A map of the exposed popoulation is produced.
The exposed population is plotted against the flood map return period.
Expected annual exposed population is also calculated, representing the expected number of people exposed on average in any given year.
Please note that due to the resolution of both the population and the flood maps, it might be that part of the population appears to be over a water body (eg: a river) and is counted towards the overall exposed statistics.
print(' Loading population for selected bounds:')
rastPopulation_zoom = rastPopulation.replace('.tif', '_zoom.tif')
print(f' {rastPopulation_zoom}')
# Load the population data within the specified bounds
with rasterio.open(rastPopulation) as src:
window = from_bounds(xMinPop, yMinPop, xMaxPop, yMaxPop, src.transform)
rPopulation = src.read(1, window=window)
rPopulation = np.ma.masked_where(rPopulation < 0.0, rPopulation)
missing_data_value = src.nodata
# Save the zoomed population raster
with rasterio.open(
rastPopulation_zoom,
'w',
driver='GTiff',
height=rPopulation.shape[0],
width=rPopulation.shape[1],
count=1,
dtype=rPopulation.dtype,
crs=src.crs,
transform=src.window_transform(window),
nodata=missing_data_value
) as dst:
dst.write(rPopulation, 1)
#Initialise population exposed array
exposedPop = []
# Process each return period
for RP in ReturnPeriods:
rastDepths_zoom = os.path.join(dirDepths, f'Europe_RP{RP}_filled_depth_zoom.tif')
with rasterio.open(rastDepths_zoom) as flood_src:
rastDepths_data = flood_src.read(1)
# Reproject the population raster to match the projection of the depths raster
with rasterio.open(rastPopulation_zoom) as pop_src:
pop_data = pop_src.read(1)
pop_transform, pop_width, pop_height = calculate_default_transform(
pop_src.crs, flood_src.crs, pop_src.width, pop_src.height, *pop_src.bounds
)
pop_profile = pop_src.profile.copy()
pop_profile.update({
'crs': flood_src.crs,
'transform': pop_transform,
'width': pop_width,
'height': pop_height
})
# Create an empty array to store the reprojected population data
reprojected_pop_data = np.zeros((flood_src.height, flood_src.width), dtype=pop_data.dtype)
reproject(
pop_data,
reprojected_pop_data,
src_transform=pop_src.transform,
src_crs=pop_src.crs,
dst_transform=pop_transform,
dst_crs=flood_src.crs,
resampling=Resampling.nearest
)
# Find the spatial intersection between the depths raster and the reprojected population raster
exposed_population = np.where(rastDepths_data > minDepthExposed, 1, 0) * reprojected_pop_data
# Sum the exposed population
total_exposed = np.sum(exposed_population)
exposedPop.append(total_exposed)
# Save the result raster for the exposed population
result_raster = os.path.join(dirResultsPop, os.path.basename(rastDepths_zoom).replace('.tif', '_exposed_population.tif'))
with rasterio.open(
result_raster,
'w',
driver='GTiff',
height=exposed_population.shape[0],
width=exposed_population.shape[1],
count=1,
dtype=exposed_population.dtype,
crs=flood_src.crs,
transform=flood_src.transform,
) as dst:
dst.write(exposed_population, 1)
if RP in ImageReturnPeriod and flagPopulationExp is True:
# Plot rasters
fig, ax = plt.subplots()
plt.title(f'{PopYear} Population exposed to river flooding with {RP}-year return period')
im = ax.imshow(np.ma.masked_where((exposed_population <= 0), exposed_population), cmap=cmap_pop, extent=(xMin, xMax, yMin, yMax),
zorder=2,alpha=0.8)
plt.xlabel('Longitude', fontsize='small')
plt.ylabel('Latitude', fontsize='small')
divider = make_axes_locatable(ax)
cax = divider.append_axes("right", size="2%", pad=0.1)
plt.colorbar(im, cax=cax,label='People',extend='max')
plt.text(0.00, -0.15, f'Exposed if Water Depth >{minDepthExposed}m', transform=ax.transAxes, fontsize=8,
verticalalignment='top', horizontalalignment='left', bbox=dict(facecolor='white', alpha=0.5, edgecolor='black'))
plt.text(.02,.02,f'Projection in {epsgRastPop}', fontsize=8,path_effects=[pe.withStroke(linewidth=3, foreground="white")], transform=ax.transAxes)
ctx.add_basemap(ax=ax, crs=epsgRastPop, source=ctx.providers.OpenStreetMap.Mapnik, attribution_size='6', alpha=1)
txt = ax.texts[-1]
txt.set_position([0.99,0.98])
txt.set_ha('right')
txt.set_va('top')
plt.show()
# Compute the total Estimated Annual Exposed Population (EAEP) over all return periods
EAEP = 0
for iRP in range(len(ReturnPeriods)-1):
diffRP = probRPs[iRP] - probRPs[iRP+1]
avgPOP = (exposedPop[iRP+1] + exposedPop[iRP]) / 2
EAEP = EAEP + avgPOP * diffRP
if flagPopulationExpGraph is True:
plt.plot(np.array(ReturnPeriods), exposedPop, marker='o', linestyle='-')
plt.ylim(0)
plt.grid(which='both', linestyle=':', linewidth=0.5, color='gray',dashes=(1,5))
plt.xlabel('Event Return Period (Years)')
plt.ylabel('People')
plt.title(f'Estimated {PopYear} exposed population for {Depth} flood depth')
graphText = f'Expected annual population exposed: {round(EAEP)} people.'
plt.text(0.96, 0.05, graphText, transform=plt.gca().transAxes, fontsize=10,
verticalalignment='bottom', horizontalalignment='right', bbox=dict(facecolor='white', alpha=0.5, edgecolor='black'))
plt.show()
print(graphText)
#CSV FILE
dfPOP = pd.DataFrame(columns=[])
dfPOP.index = ReturnPeriods
dfPOP.index.name = 'Flood event return period (years)'
dfPOP['People Exposed'] = exposedPop
population_csv_filename = os.path.join(dirResultsPop, f'ExposedPopulationTotal_{Depth}.csv')
dfPOP.to_csv(population_csv_filename)
Loading population for selected bounds:
.\data\GHS_POP_E2025_GLOBE_R2023A_4326_3ss_V1_0_R5_C20_zoom.tif
Expected annual population exposed: 533 people.
Displaced population#
Based on the flood depth maps, the displaced population is a subset of the exposed population that experience flood depths above a given threshold.
The population and flood rasters are compared.
The displaced population is written to a CSV file.
A map of the displaced population is produced.
The plot of displaced population vs flood map return period is produced.
Expected annual displaced population is also calculated, representing the expected number of people displaced on average per year.
Please note that due to the resolution of both the population and the flood maps, it might be that part of the population appears to be over a water body (eg: a river) and is counted towards the overall displaced statistics.
# Initialise displaced population array
displacedPop = []
# Process each return period
for RP in ReturnPeriods:
rastDepths_zoom = os.path.join(dirDepths, f'Europe_RP{RP}_filled_depth_zoom.tif')
with rasterio.open(rastDepths_zoom) as flood_src:
rastDepths_data = flood_src.read(1)
# Reproject the population raster to match the projection of the depths raster
with rasterio.open(rastPopulation_zoom) as pop_src:
pop_data = pop_src.read(1)
pop_transform, pop_width, pop_height = calculate_default_transform(
pop_src.crs, flood_src.crs, pop_src.width, pop_src.height, *pop_src.bounds
)
pop_profile = pop_src.profile.copy()
pop_profile.update({
'crs': flood_src.crs,
'transform': pop_transform,
'width': pop_width,
'height': pop_height
})
# Create an empty array to store the reprojected population data
reprojected_pop_data = np.zeros((flood_src.height, flood_src.width), dtype=pop_data.dtype)
reproject(
pop_data,
reprojected_pop_data,
src_transform=pop_src.transform,
src_crs=pop_src.crs,
dst_transform=pop_transform,
dst_crs=flood_src.crs,
resampling=Resampling.nearest
)
# Find the spatial intersection between the depths raster and the reprojected population raster
displaced_population = np.where(rastDepths_data > minDepthDisplaced, 1, 0) * reprojected_pop_data
# Sum the exposed population
total_displaced = np.sum(displaced_population)
displacedPop.append(total_displaced)
# Save the result raster for the exposed population
result_raster = os.path.join(dirResultsPop, os.path.basename(rastDepths_zoom).replace('.tif', '_displaced_population.tif'))
with rasterio.open(
result_raster,
'w',
driver='GTiff',
height=displaced_population.shape[0],
width=displaced_population.shape[1],
count=1,
dtype=displaced_population.dtype,
crs=flood_src.crs,
transform=flood_src.transform,
) as dst:
dst.write(displaced_population, 1)
if RP in ImageReturnPeriod and flagPopulationDis is True:
# Plot rasters
fig, ax = plt.subplots()
plt.title(f'{PopYear} Displaced population for the river flood event with {RP}-year return period')
im = ax.imshow(np.ma.masked_where((displaced_population <= 0), displaced_population), cmap=cmap_pop, extent=(xMin, xMax, yMin, yMax),
zorder=2,alpha=0.8)
plt.xlabel('Longitude', fontsize='small')
plt.ylabel('Latitude', fontsize='small')
divider = make_axes_locatable(ax)
cax = divider.append_axes("right", size="2%", pad=0.1)
plt.colorbar(im, cax=cax,label='People',extend='max')
plt.text(0.00, -0.15, f'Displaced if flood depth >{minDepthDisplaced}m', transform=ax.transAxes, fontsize=8,
verticalalignment='top', horizontalalignment='left', bbox=dict(facecolor='white', alpha=0.5, edgecolor='black'))
plt.text(.02,.02,f'Projection in {epsgRastPop}', fontsize=8,path_effects=[pe.withStroke(linewidth=3, foreground="white")], transform=ax.transAxes)
ctx.add_basemap(ax=ax, crs=epsgRastPop, source=ctx.providers.OpenStreetMap.Mapnik, attribution_size='6', alpha=1)
txt = ax.texts[-1]
txt.set_position([0.99,0.98])
txt.set_ha('right')
txt.set_va('top')
plt.show()
# Compute the total Estimated Annual Displaced Population (EADP) over all return periods
EADP = 0
for iRP in range(len(ReturnPeriods)-1):
diffRP = probRPs[iRP] - probRPs[iRP+1]
avgPOP = (displacedPop[iRP+1] + displacedPop[iRP]) / 2
EADP = EADP + avgPOP * diffRP
if flagPopulationDisGraph is True:
plt.plot(np.array(ReturnPeriods), displacedPop, marker='o', linestyle='-')
plt.ylim(0)
plt.grid(which='both', linestyle=':', linewidth=0.5, color='gray',dashes=(1,5))
plt.xlabel('Event Return Period (Years)')
plt.ylabel('People')
plt.title(f'Estimated displaced population for {Depth} depth \n (Population statistics based on estimate for 2025)')
graphText = f'Expected Annual Population Displaced: {round(EADP)} people.'
plt.text(0.96, 0.05, graphText, transform=plt.gca().transAxes, fontsize=10,
verticalalignment='bottom', horizontalalignment='right', bbox=dict(facecolor='white', alpha=0.5, edgecolor='black'))
plt.show()
print(graphText)
#CSV FILE
dfPOP = pd.DataFrame(columns=[])
dfPOP.index = ReturnPeriods
dfPOP.index.name = 'Event Return Period (years)'
dfPOP['People Exposed'] = exposedPop
population_csv_filename = os.path.join(dirResultsPop, f'DisplacedPopulationTotal_{Depth}.csv')
dfPOP.to_csv(population_csv_filename)
Expected Annual Population Displaced: 374 people.
Conclusion#
In the risk assessment:
Flood and population maps where generated.
By combining hazards with exposure and vulnerabilities the risk was computed
Building damage maps and estimated yearly damage.
Population displacement and estimated yearly displacement.
Moreover, overall population and critical infrastructure exposed were also showcased.
How do the results match with your expectations?
Having knowledge of the location can help assess if the results match with the expectations. If not, why not? Is it due to data limitations or are there other reasons?
For example known water defenses may affect the way flooding occurs, especially for low return periods.
Which limitations of datasets have significantly influenced the results?
As aforementioned, there are multiple limitations which have to be considered, and which are context-dependent. Each limitation may have minimal impacts on the results for your area, or alternatively, can be a major source of influence. It is important to reflect on how this can affect the results, and if its necessary to improve the datasets.
